Temperature Humidity Environmental Testing Equipment Stainless Steel SUS304

Place of Origin : Guangdong

Payment Terms : L/C, T/T

Contact Now

High and low temperature humidity test chamber/ High & low temperature humidity environmental testing lab

High and low temperature humidity test chamber
Model ST300A-20 ST500A-20 ST1000A-20 ST300A-40 ST500A-40 ST1000A-40 ST300A-40 ST500A-40 ST1000A-40
Nominal volume (L) 294 504 1000 294 504 1000 294 504 1000
Performance Temperature range (-20℃~+150℃) (-40℃~+150℃) (-40℃~+150℃)
Humidity range 25~98%RH
Temp. Fluctuation ±0.5℃
Temp. Deviation ±2℃
Humidity deviation ±3%RH(≤75%RH),±5.0%RH(≤75%RH)
Temp. Rising time (-20℃~+150℃) (-40℃~+150℃) (-70℃~+150℃)
≤60min
Temp. dropping time (+20℃~-20℃) (+20℃~-40℃) (+20℃~-70℃)
≤45min ≤60min ≤80min
Internal demension mm W 700 800 1000 700 800 1000 700 800 1000
H 700 900 1000 700 900 1000 700 900 1000
D 600 700 1000 600 700 1000 600 700 1000
Extenal demension mm W 900 1000 1200 900 1000 1200 900 1000 1200
H 1796 1996 2096 1795 1996 2096 1796 1996 2096
D 1382 14825 1782 1382 1482 1782 1382 1482 1782
Method of Temp. control BTC balance temp. control
Operating enviorment Temp.: 5~35℃, relative humidity: ≤85%RH, Atomoshperic pressure: 86~106KPa
Material External material Galvanized sheet on both side, plastic-spray surface treatment.
Inner chamber material Stainless steel SUS304
Isolation material Hard PU foam+ glass fiber wool
Heater Nickel-chromium alloy wire heater
fan motor Centrifugal fan
Cooling method Mechanical compression single stage refrigeration (air cooling) Mechanical compression binary folding refrigeration (air cooling)
Compressor Full sealing compressor
Refrigerant R404a R404a/R23
Controller Display 7"LCD touch screen
Way of running Fixed parameter and programable
Way of setup By touchscreen
Program volume 120 program, max. 100 line in one program, max 999 loops.
Setting range According to the working temp. of the chamber to adjust ( upper limit +5℃, lower limit -5℃)
Display resolution Time: 0.1min; Temp. : 0.1℃; Humidity: 0.1%RH
Input platinum resistor
Control method Anti - integral saturated PID, BTC Coordinate temperature control mode
Water supply way of supply water pump
Built-in water storage capacity. 25L 25L 25L*2 25L 25L 25L*2 25L 25L 25L*2
Water quality electrical resistivity >500Ω*m
Power source AC380V±10% 50HZ±10% Three phase four wire + protection earth wire
Max. current of power source (A) 15 23 40 18 29 46 23 35 52
Power (kW) 4.5 6.5 10 5.5 7 12 8 9 14
Weight (kg) 325 360 375 350 405 750 400 505 820
Cable hole (2 pcs) φ50 φ100 φ50 φ100 φ50 φ100
Standard configuration Hour meter 1 pcs, sample frames 2 sets, power cable (5m) 1 pcs
Optional accessories Rubber cover for cable hole, sample frame, wet-ball gauze, water purifier
Safty device Leakage protector, Over heating protector inside the chamber, overload protector for the fan motor, compressor over-pressure protection, over-flow protection, Phase order protection, Dry heating protection, Waterway protection and etc…


Product Tags:

environmental test chamber



environmental testing machine



SUS304 Environmental Testing Equipment


China Temperature Humidity Environmental Testing Equipment Stainless Steel SUS304 wholesale

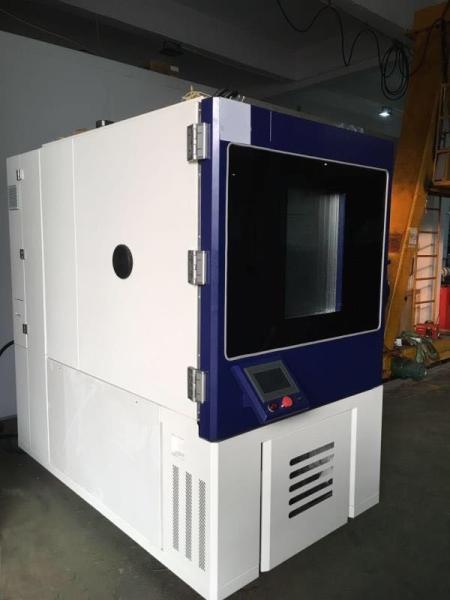

Temperature Humidity Environmental Testing Equipment Stainless Steel SUS304 Images
